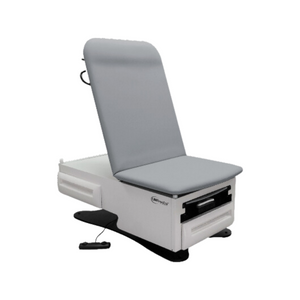

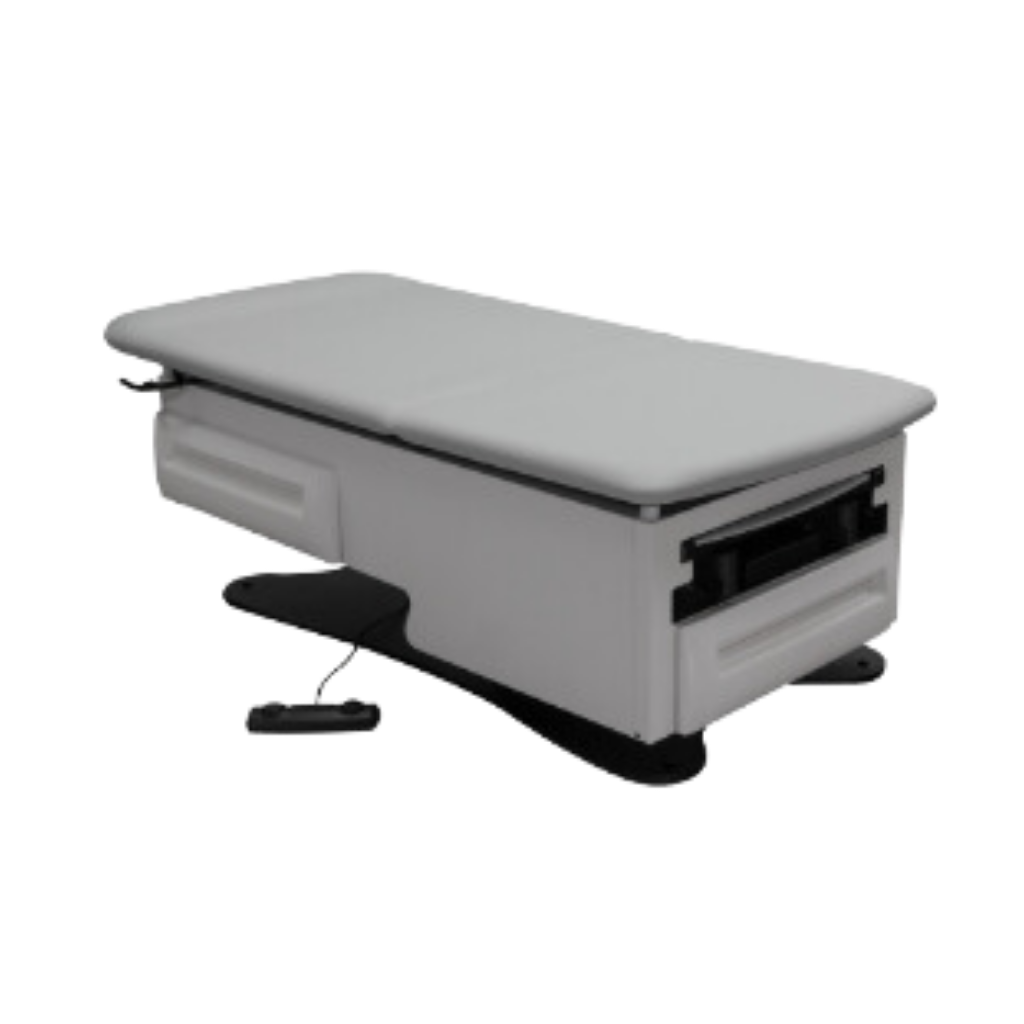

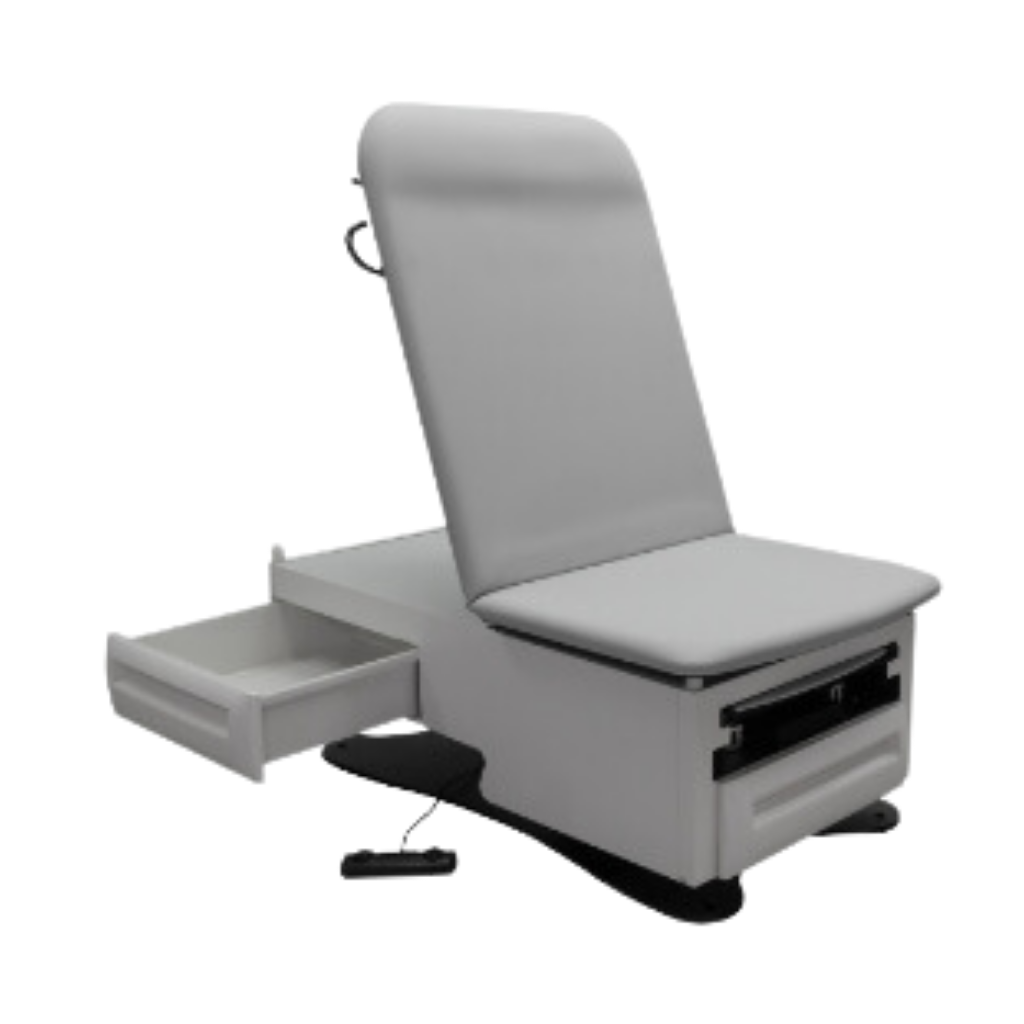

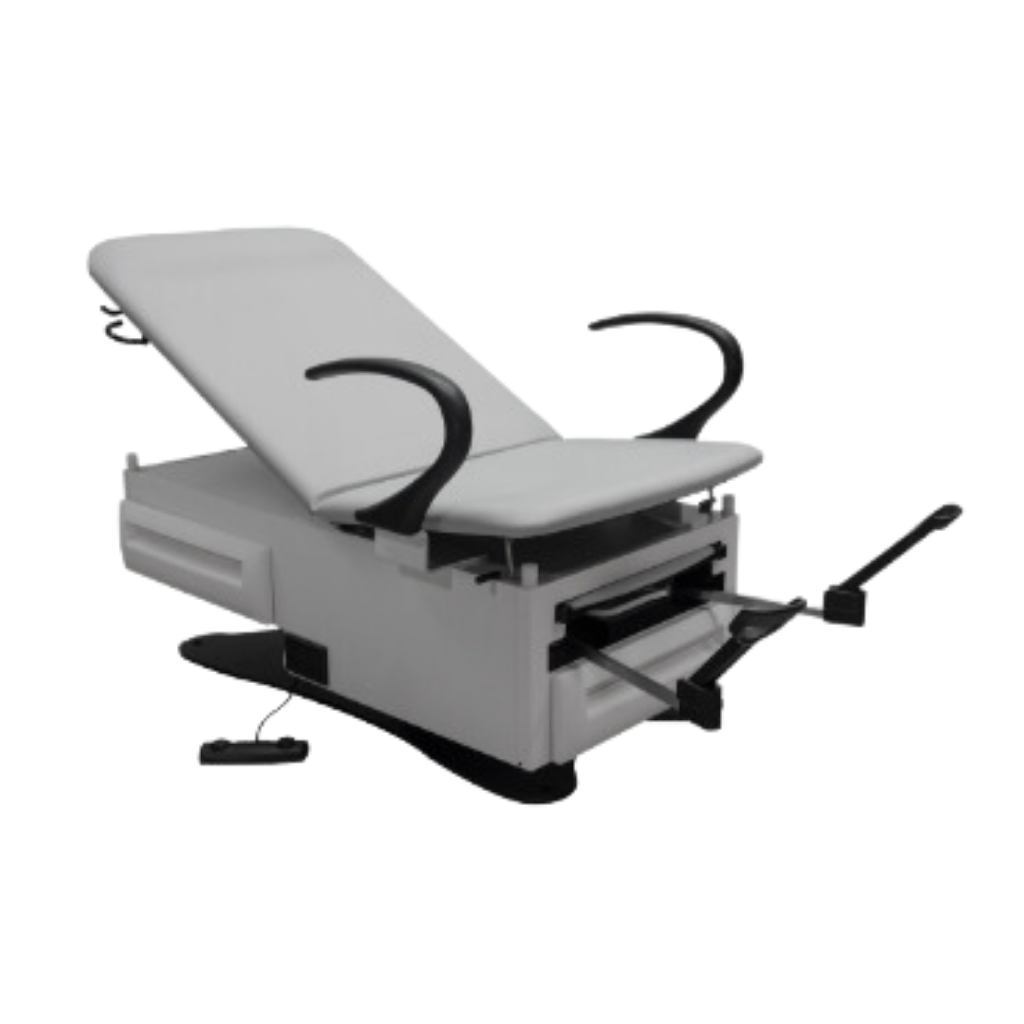

FusionONE Power Exam Table Model 3001

With the ACCESSIBILITY of a power table and the AFFORDABILITY of a box table, the FusionONE Power Exam Table offers the features healthcare providers need most — all in ONE table!

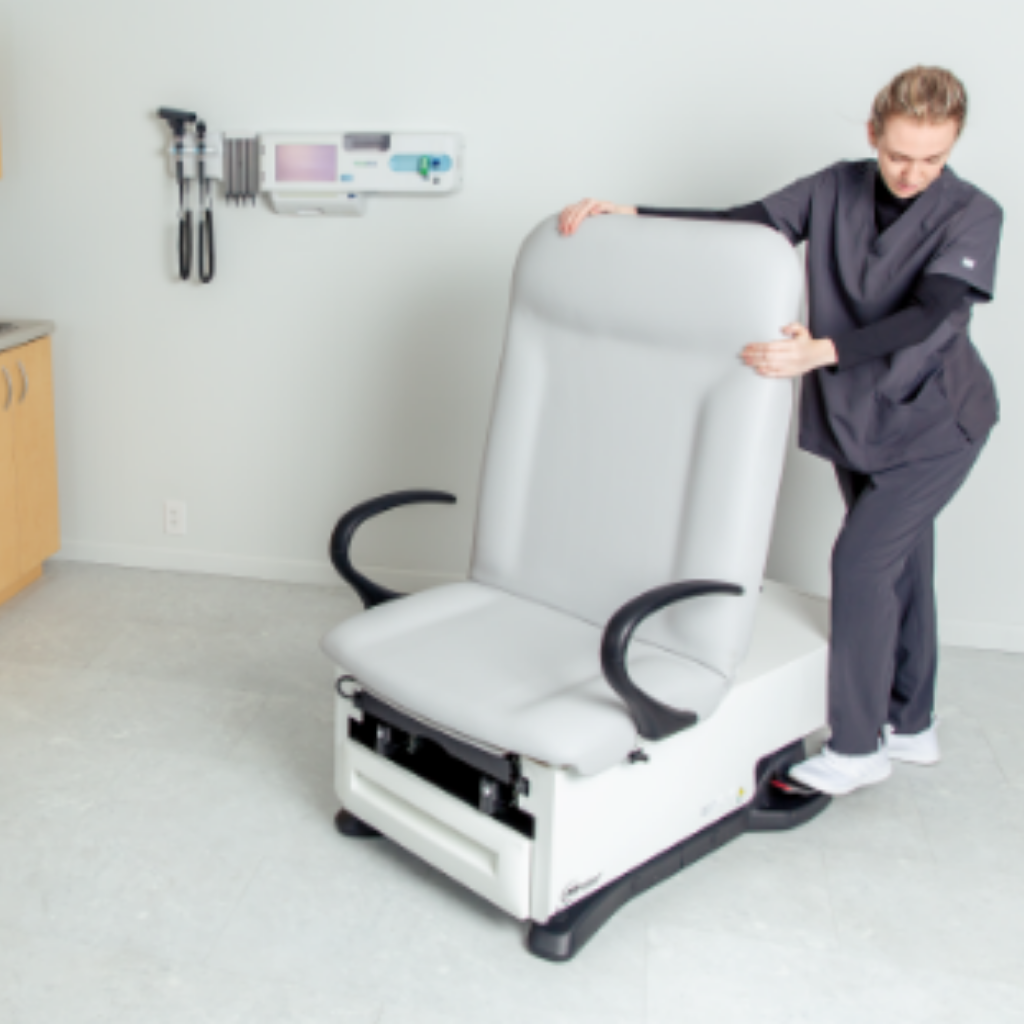

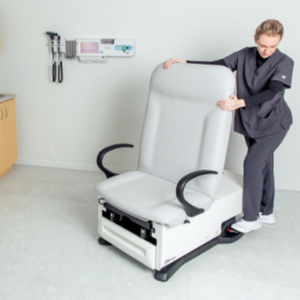

The OneTouch WheelBase®️ System from UMF Medical makes moving our ProGlide™️ Series of products as easy as pushing a pedal. The integrated central-locking wheelbase with an intuitive foot pedal enables staff to move the equipment easily and quickly for cleaning, then lock it solidly into place for exams.

This hi-lo power exam table enables simple ADA access and ease of examination for patients of all ages and abilities.

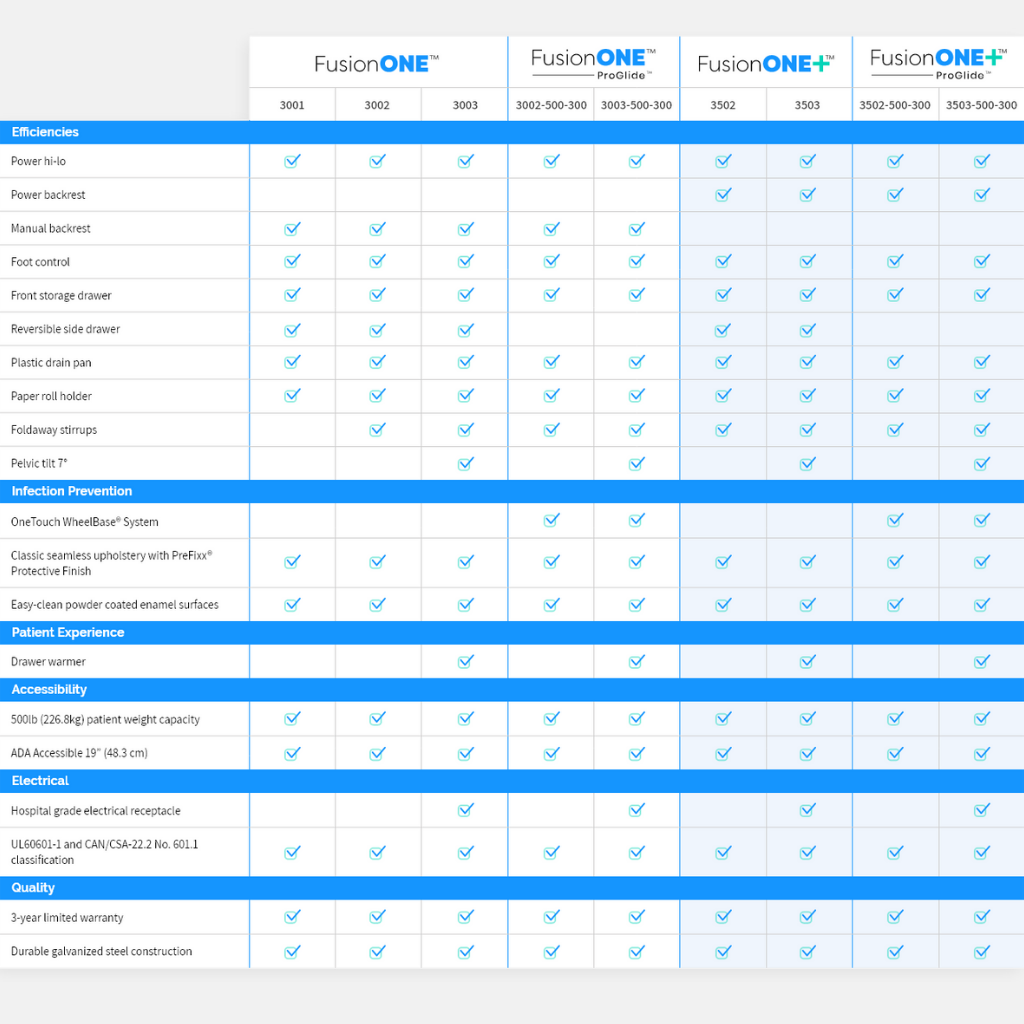

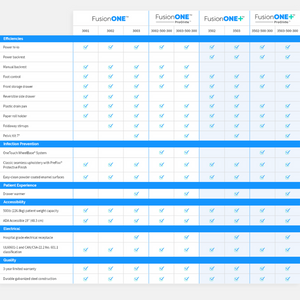

Every FusionONE and FusionONE+ model is available with Classic or Premium upholstery. Experience enhanced comfort, elegance, and softness in 16 stylish colors. The Premium upholstery model will elevate the aesthetics and comfort of any space. Download the product information for a full list of features and options.

• Height: min. 19” (48.3 cm) at seat max. 32” (81.3 cm)
• Width: 28” (71.12 cm)
• Length: 58”-76” with foot section extended (147.3 cm - 193.0 cm)
• Leg rest: 18” W x 18” D (45.7cm W x 45.7 cm D)
• Storage Drawer (Front): 18.0” W x 12.0” D x 3.0” H (46 cm x 30 cm x 8 cm)
• Weight capacity: 500lb (226.8kg)
• Net weight: 325 lbs. (147kg) for 3000 series & 350 lbs. (159kg) for 3500 series
• Shipping weight: 365 lbs. (166kg) for 3000 series & 390 lbs. (177kg) for 3500 series
• Shipping dimensions: 30” W x 64” L x 31” H (76.2 cm x 162.6 cm x 78.7 cm)
• Storage Drawer (Side): 17.5” W x 21.0” D x 5.0” H (44 cm x 53 cm x 13 cm) (model dependent)
• Single column electro-magnetic actuator
• Electrical: 120-240 VAC, 50-60 HZ for 3000 series & 120- 220 VAC, 50-60Hz for 3500 series
• Amp range: 5 to 10.5 amp, depending on model

3-year limited warranty

UMF Medical manufactures the most innovative exam tables and procedure chairs in the industry.

The ProGlide series with the patented OneTouch WheelBase® System, enables staff to effortlessly move the table to clean the entire exam room and then lock solidly in place for exams - while maintaining ADA height. In addition, the OneTouch Patient Positioning® System enables efficient patient positioning in clinician-preferred, programmable exam positions and return-to-home with a touch of a button. To help healthcare providers meet the needs of the changing patient population, all UMF Medical power tables offer 650-lb. patient weight capacity and ADA wheelchair access.

Because healthcare providers are being asked to do more with less, UMF Medical’s complete exam room solutions are designed to help providers meet changing requirements. And, with accessible casework, mobile cabinets, physician stools and chairs, UMF Medical offers solutions to meet the needs of a changing patient population and backs these quality products with the longest warranties in the industry.
