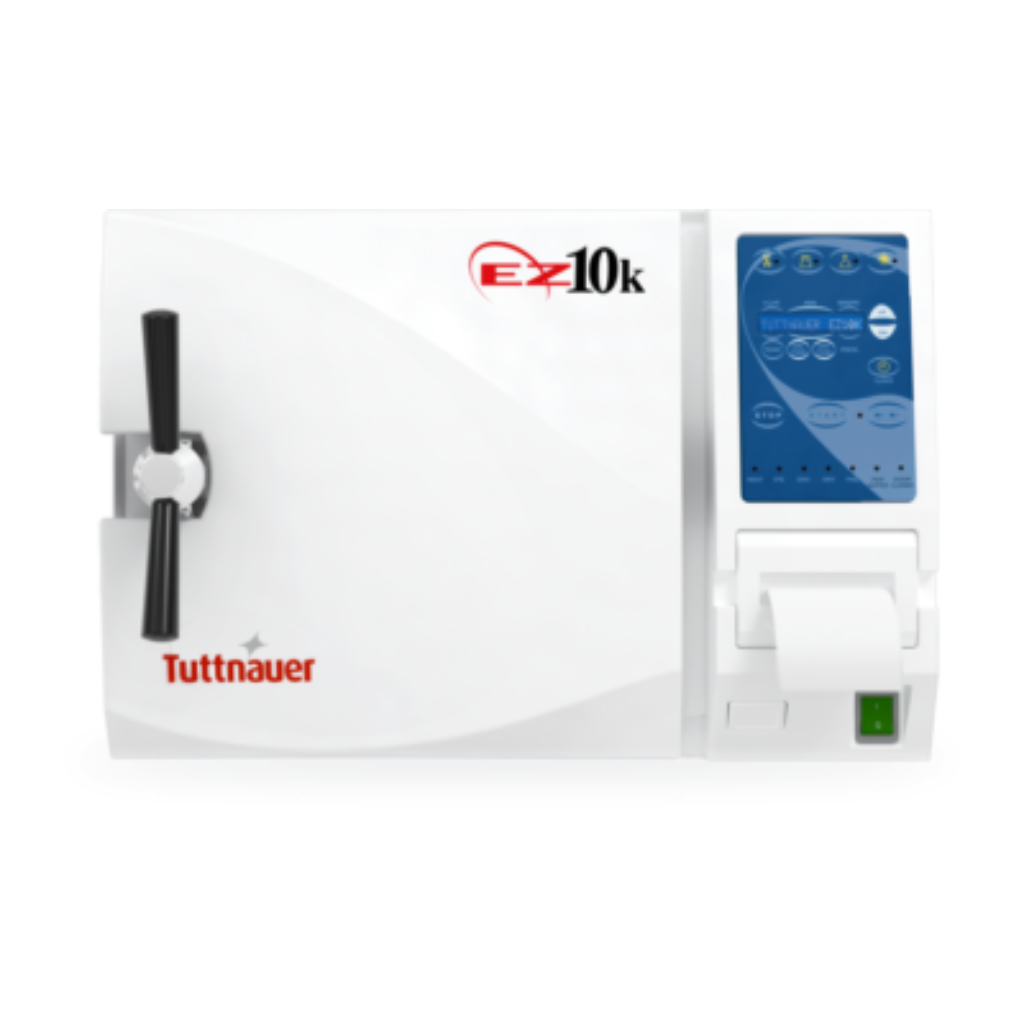

Tuttnauer Closed Door Fully Automatic EZ10K

Time-saving, easy operation
The EZ10K's brighter and easier to read panel delivers full penetration of steam and post-vacuum drying. The chamber door remains closed during the entire cycle, while replaceable 0.2μm Hepa air filters circulates in the chamber. All program parameters can be customized and stored.
Imagen
EZ10 Autoclave with open door
Closed Door Drying
Maintains sterility and ensures efficient drying of packs and pouches
High Efficiency Air Pump
High efficiency air pump circulates air in chamber during drying cycle
Optional Internal Printing
Documents date, time, temperature and pressure
Easy to read Control Panel
With program selection, detailed digital display, programmable keys and system indicators
Customizable
Program parameters can be customized and stored
Versatile
Pre-loaded cycles for unwrapped instruments, wrapped/packs, glassware and additional drying cycle

Technical specifications
Overall Dimensions (DxWxH)
21.5” x 20” x 14.4”
545mm x 510mm x 365mm
Chamber Volume
23 Liter
6 Gallon
Tray Capacity
4 Trays
Tray Dimensions
16,3” x 6,7" x 0.6”,
415mm x 170mm x 20mm
Standard Cassette Capacity
3 full & 3 half*
Voltage & Frequency
230V
50-60Hz
Power & Current
2200W
10A
Model EZ10k requires a voltage between 220V and 235V for proper operation. When applicable a buck/boost transformer (0.5KVA) may be required
Shipping Weight
95 lb.
43 kg.
Warranty
2 years parts and labor
NOTE
*Standard full size cassette is 8” x 11” and standard half size cassette is 8” x 5.5”.

2 years parts and labor
