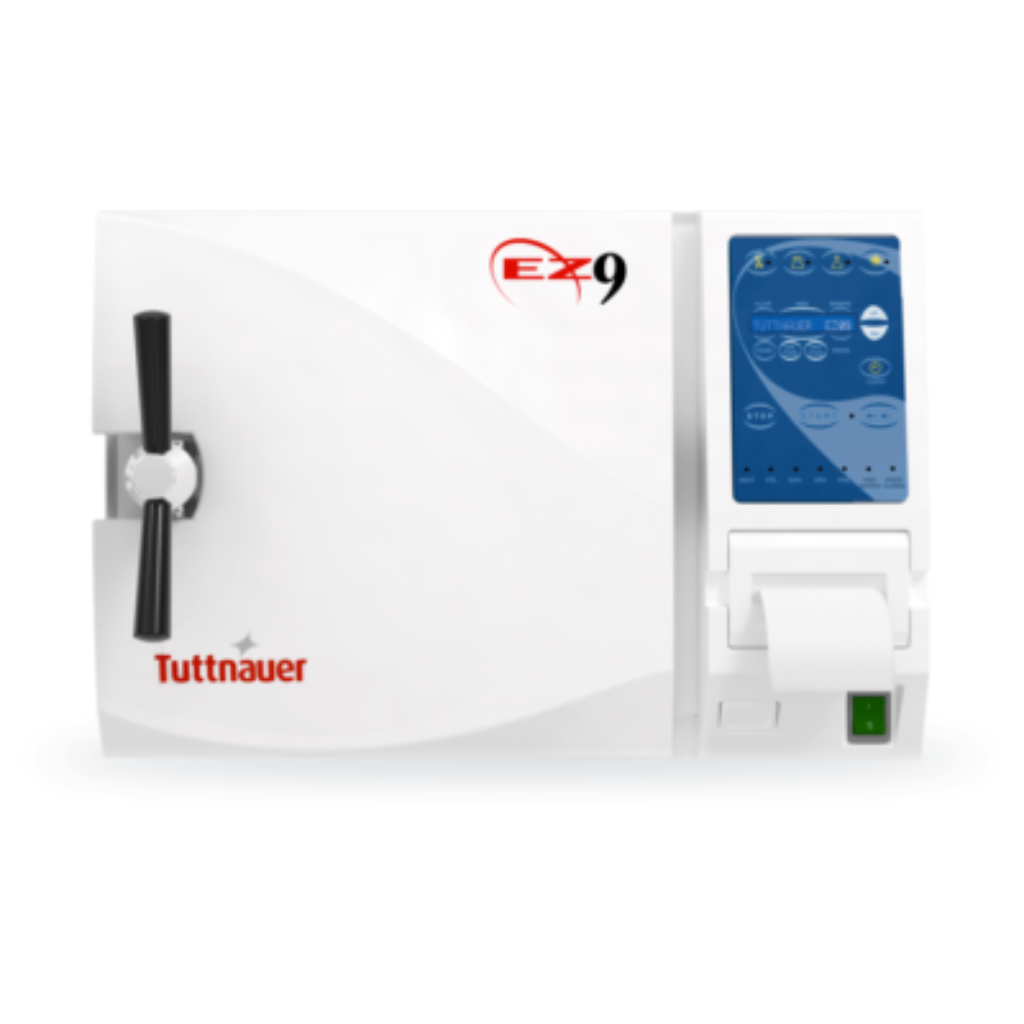

Tuttnauer Closed Door Fully Automatic EZ9P

Time-saving, easy operation
The EZ9's brighter and easier to read panel delivers full penetration of steam and post-vacuum drying. The chamber door remains closed during the entire cycle, while replaceable 0.2μm Hepa air filters circulates in the chamber. All program parameters can be customized and stored.
Imagen
EZ9 Tabletop Sterilizer with open door
Closed Door Drying
Maintains sterility and ensures efficient drying of packs and pouches
High Efficiency Air Pump
High efficiency air pump circulates air in chamber during drying cycle
Optional Internal Printing
Documents date, time, temperature and pressure
Easy to read Control Panel
With program selection, detailed digital display, programmable keys and system indicators
Customizable
Program parameters can be customized and stored
Versatile
Pre-loaded cycles for unwrapped instruments, wrapped/packs, glassware and additional drying cycle

Technical specifications
Overall Dimensions (DxWxH)
21.5” x 20” x 14.4”
545mm x 510mm x 365mm
Chamber Volume
19 Liter
5 Gallon
Chamber Dimensions
9” x 20” x 18”
230mm x 470mm
Tray Capacity
3 Trays
Tray Dimensions
16,3” x 6,7" x 0.6”,
415mm x 170mm x 20mm
Standard Cassette Capacity
2 full & 2 half*
Voltage & Frequency
120V
50-60Hz
Power & Current
1400W
12A
Shipping Weight
94 Lbs.
43 Kg.
Warranty
2 years parts and labor
NOTE
*Standard full size cassette is 8” x 11” and standard half size cassette is 8” x 5.5”.

2 years parts and labor

With over 95 years developing trusted sterilization and infection control solutions found in Med Spa's, Cosmetic Dermatology Practices, hospitals, laboratories & clinics in more than 140 countries. Tuttnauer is driven by R&D, an appreciation for high quality German manufacturing, and a high level of standards and regulatory compliance for the products they sell.
