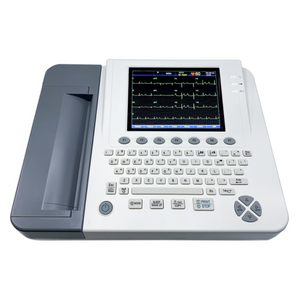

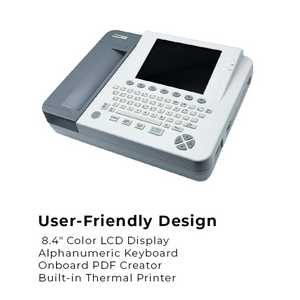

Edan SE-1200EB EKG/ECG Machine

Physical Specifications:

• Dimensions 420mm×330mm×120mm
• Weight 5kg (Excluding recorder paper and battery)
• Display 8 inch, 800×600 multicolor LCD screen

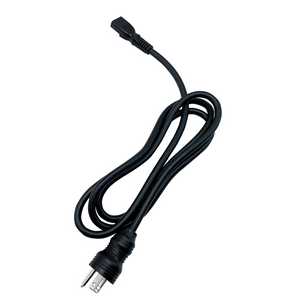

Power Supply

Mains Supply:
• Operating Voltage = 100V-240V
• Operating Frequency = 50Hz/60Hz
• Input Current = 0.9-0.4A

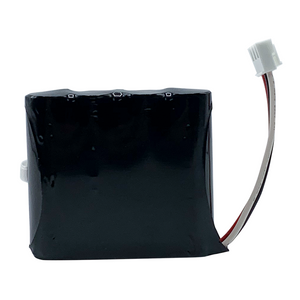

Internal Li-ion Battery Pack:
• Rated voltage = 14.8V
• Rated capacity = 2500/5000mAh
• (1.5/2.5 hours continuous printing, 300/450 ECG reports)
• Necessary Charge time: 3/6 hours

Recording

• Recorder: Thermal dot-matrix recorder
• Printing Density:
• 8 dots per mm / 200 dots per inch (amplitude axes)
• 40 dots per mm / 1000 dots per inch (time axes,@ 25
mm/s)

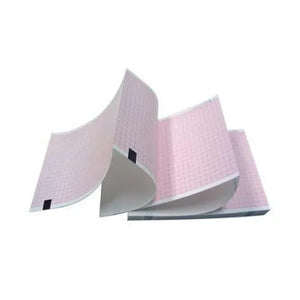

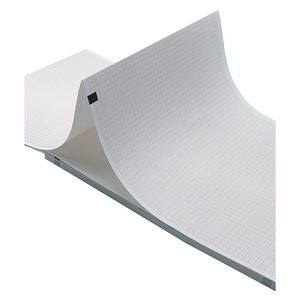

• Recorder Paper: SE-12P- Z Fold thermal paper:
210mm×295mm×100pages
• Paper Speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s

External Printer:
• HP1010/1510, HP M401, HP 1020/1020PLUS/1106,
• HP 2010/1050/2000, HP 2015/2035, HP 1525

HR Recognition
• HR Range: 30 BPM ~300 BPM
• Accuracy: ±1 BPM

ECG Unit

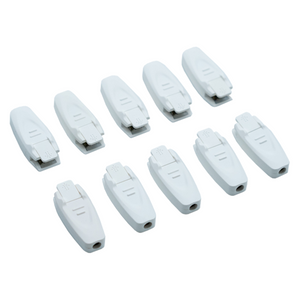

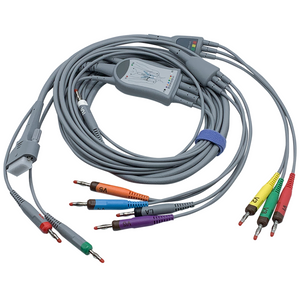

• Leads: 12 standard leads
• Acquisition Mode: simultaneously 12 leads
• A/D Converter: 24 bits
• Resolution: 2.52uV/LSB
• Time Constant: ≥3.2s
• Frequency Response: 0.01Hz ~ 300Hz (-3dB)
• Gain: 1.25, 2.5, 5, 10, 20, 10/5 mm/mV, AGC
• Input Impedance: ≥100MΩ (10Hz)
• Input Circuit Current: ≤0.01μA
• Input Voltage Range： ≤±5 mVpp
• Calibration Voltage: 1mV±2%
• CMRR: ≥140dB (AC on), ≥123dB (AC off)
• Sampling Frequency 16000 Hz

Pacemaker
• Amplitude: ±750μV to ±700 mV
• Width: 50μs to 2.0 ms

Filter
• AC Filter: 50/60Hz
DFT Filter:
• 0.01Hz/0.05Hz/0.15Hz/0.25Hz/0.32Hz/0.5Hz/0.67Hz
• EMG Filter: Off/25Hz/35Hz/45Hz
• LOWPASS Filter: 300Hz/270Hz/150Hz/100Hz/75Hz

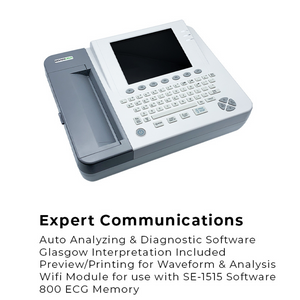

Data Transmission
• Report Format: PDF, XML, DICOM, FDA-SCP
• Data Transmission: Wi-Fi, Ethernet, RS232
• Data Management System: SE-1515 Data Management System, bi-directional communication
• HIS connection: DICOM Worklist/DICOM
Storage/HL7/GDT

Wi-Fi
• Transmitting Frequency: 2400-2497MHz
• Frequency Band: 2400-2497MHz
• Modulation Type: DSSS, CCK, OFDM
• Transmitting Power: 6 - 17dBm
• Effective Radiated Power: 6 - 17dBm

Safety Specifications
Comply with:
• IEC 60601-1:2005/A1:2012
• EN 60601-1:2006/A1:2013
• IEC 60601-1-2:2007
• EN 60601-1-2:2007/AC:2010
• IEC/EN 60601-2-25
• Anti-electric-shock type: Class І with internal power supply
• Anti-electric-shock degree: CF type with defibrillation-proof
Patient Leakage Current:
• NC <10μA (AC) / <10μA (DC)
• SFC <50μA (AC) / <50μA (DC)
Patient Auxiliary Current:
• NC <10μA (AC) / <10μA (DC)
• SFC <50μA (AC) / <50μA (DC)

Environment Specifications

Temperature:
• Transport & Storage: -20ºC (-4ºF) ~ +55ºC (+131ºF)
• Working: +5ºC (+41ºF) ~ +40ºC (+104ºF)

Relative Humidity:
• Transport & Storage: 25%~93% Non-Condensing
• Working: 25%~80% Non-Condensing

Atmospheric Pressure:
• Transport & Storage: 70kPa ~106kPa
• Working: 86kPa ~106kPa
