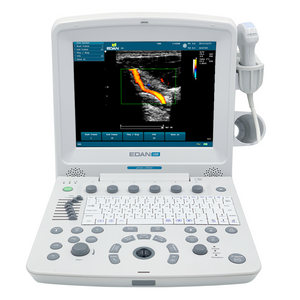

Edan U50 Diagnostic Ultrasound System

Edan

U50

Shipping Type: Medium Equipment | See Shipping Policy for more details

Standard Features:

  • USB Disk (only for international marketing)
  • Probe cable holder
  • Dustproof cloth 1.8.
  • Transducers
  • Printers
  • Battery (only for international marketing)
  • Hard disk
  • Needle Guide Bracket Kit
  • Mobile trolley
  • Footswitch
  • Hand carried bag
  • Luxury Hand carried bag
  • DICOM 3.0

General Measurement:

  • B Mode: Distance, Cir/Area, Volume: 2-Axis, 3-Axis, 3-Axis(LWH), Ratio, Angle, %Stenosis: Distance, Area, Histogram
  • M Mode: Distance, Time, Slope, Heart Rate
  • Doppler: Velocity, Heart Rate, Time, Acceleration, RI, Auto: PS, ED, TAMAX, RI, PI, S/D, Trace Direction: Above, below, Dual, Trace Sensitivity+, Trace Sensitivity-

U50 Accessories:

  • User Manual
  • Luxury Travel Bag
  • Transducer Holder
  • Battery
  • Power Cord (USA Standard)
  • Ground Cable
  • Ultrasound Gel (250g)
  • Luxury Mobile Trolley

    Physical Specification:
    System Architecture
    - Physical Channels: 24
    - System dynamic range: 0-158dB
    - Beam forming: Dual beam
    - Memory: 504MB
    - Hard drive: 320GB(optional)
    - Operation System: ucos
    2.2. Dimension and weight
    - Height: 32cm
    - Width: 22cm
    - Depth: 33cm
    - Weight: 7.1kg

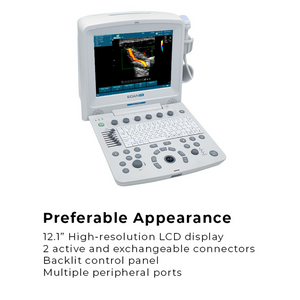

    2.3. Monitor
    - 12.1’’ TFT-LCD monitor
    - Resolution: 1024 x 768
    - Imaging field size: 640*512
    - Video out size: 1024 * 680
    - Capture size: BMP, JPG, AVI, DCM 1024 *
    768; FRM, CIN 640 * 512
    - View angle: Up 80°, Down 80°, Left 80°,
    Right 80°
    - Brightness, Contrast and Color Temp
    adjustable
    - Built-in stereo speaker
    2.4. Transducer port and holder
    - 2 active ports
    - 2holders
    - 1 Coupling holder
    2.5. Electrical Power
    - Voltage: 110V-240VAC
    - Frequency: 50/60 Hz
    - Power: 74.4w
    2.6. Battery
    - Rechargeable lithium ion battery
    - Capacity: 5000mAh
    - Removable
    - Approximately 60 minutes of typical
    ultrasound exam use
    - Max charging time:8 hours
    2.7. Environmental operating requirements
    - Ambient temperature: 5° to 40°C
    - Relative Humidity: 25%~80% (no
    condensation)
    - Atmospheric pressure: 86kPa-106kPa
    2.8. Environmental storage requirements
    - Ambient temperature: -20° to 55°C
    - Relative Humidity: 25%~93% (no
    condensation)
    - Atmospheric pressure: 70kPa-106kPa

    Edan, a healthcare company, distinguishes itself with a commitment to quality and customer satisfaction. With FDA 510(k) clearance, Health Canada licenses, and the CE mark for approval, Edan remains dedicated to providing the highest quality diagnostic equipment that significantly improves patient care, all while offering competitive pricing lower than major U.S. competitors.
