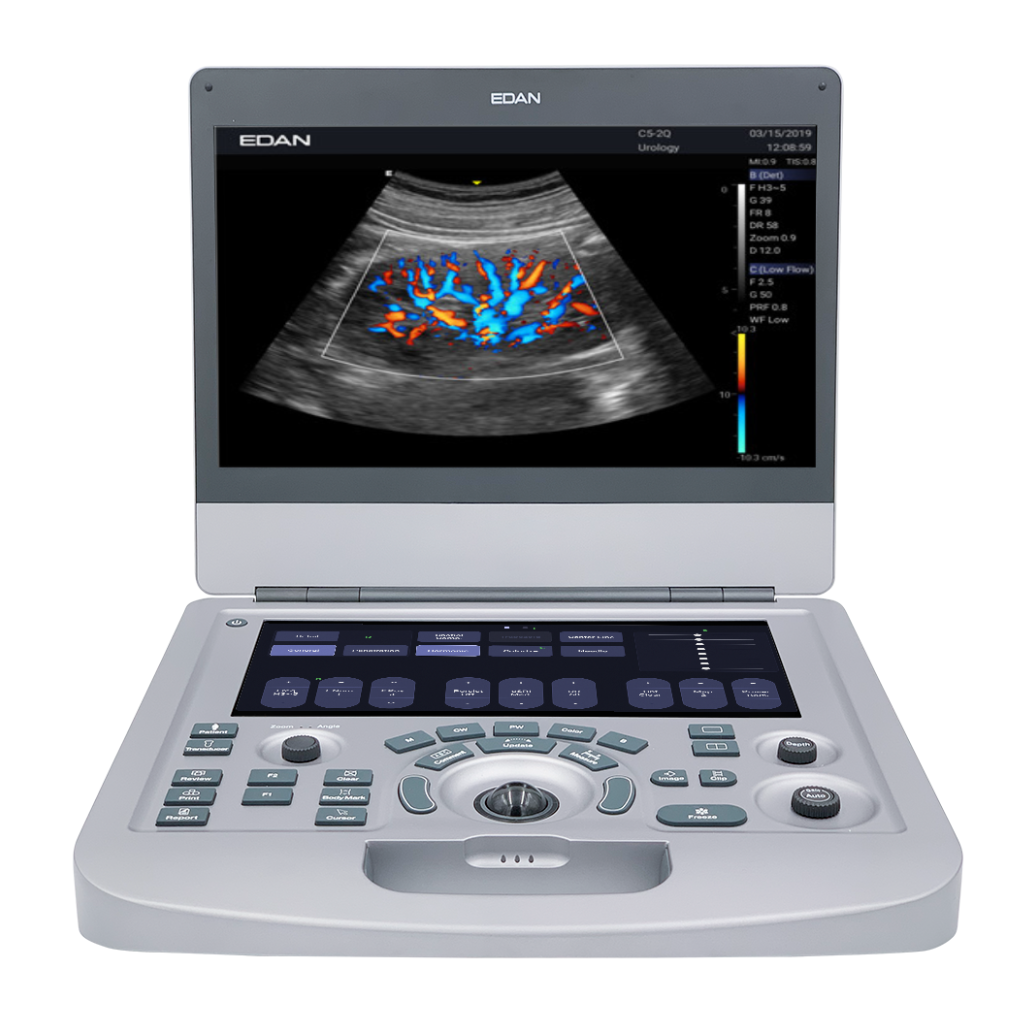

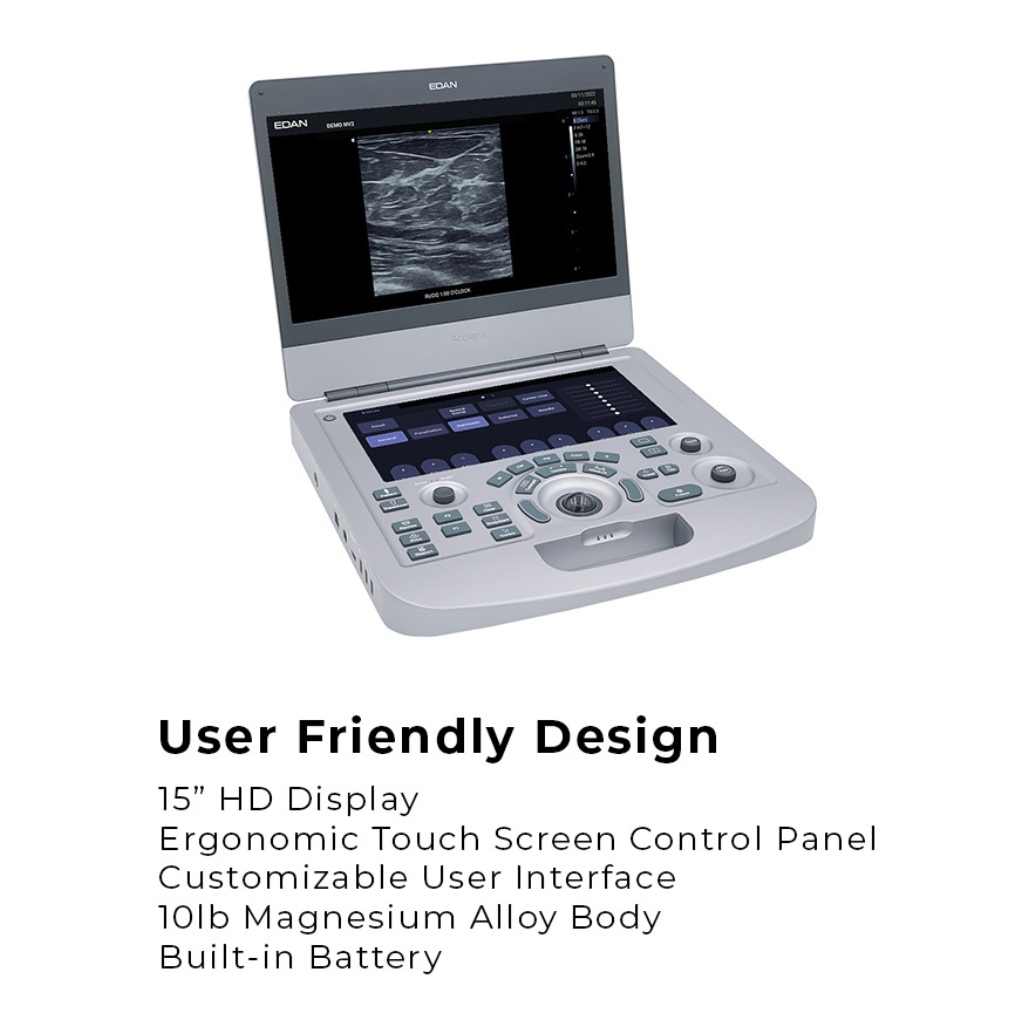

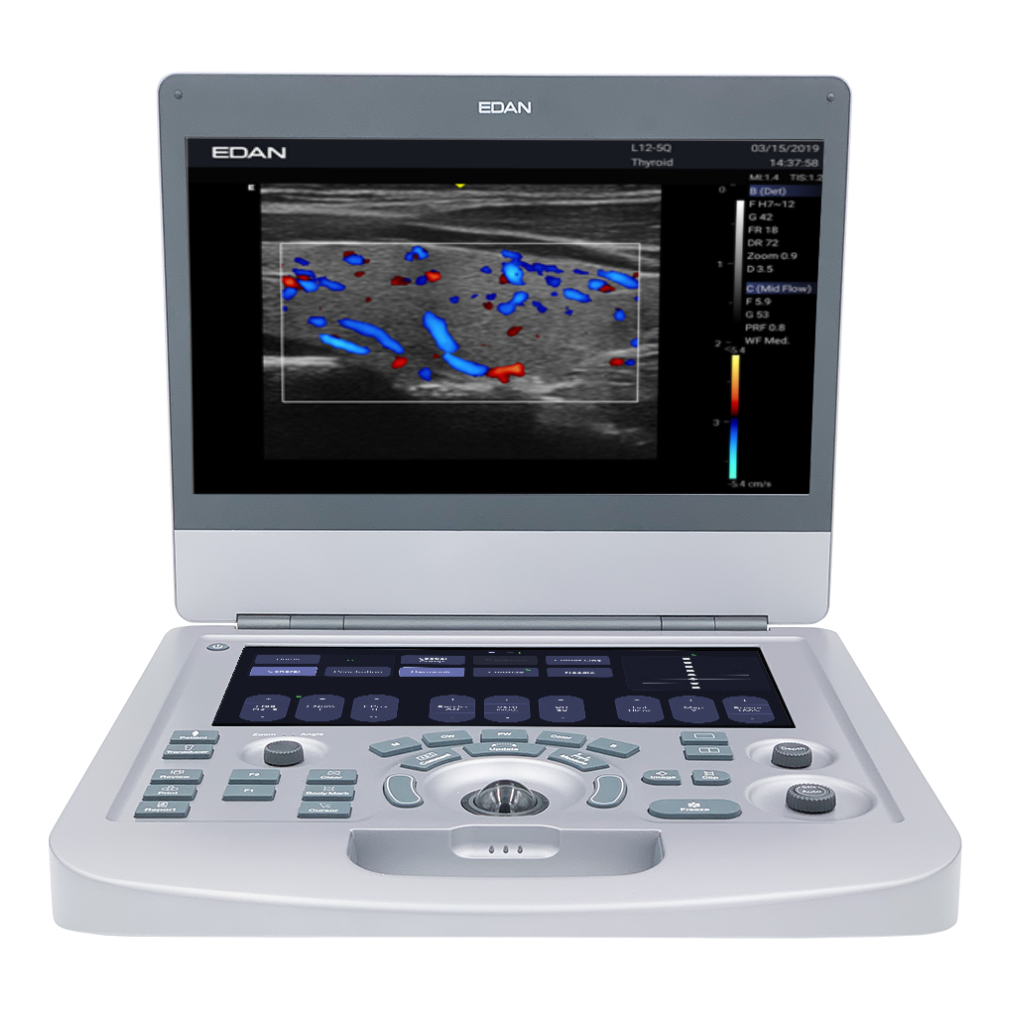

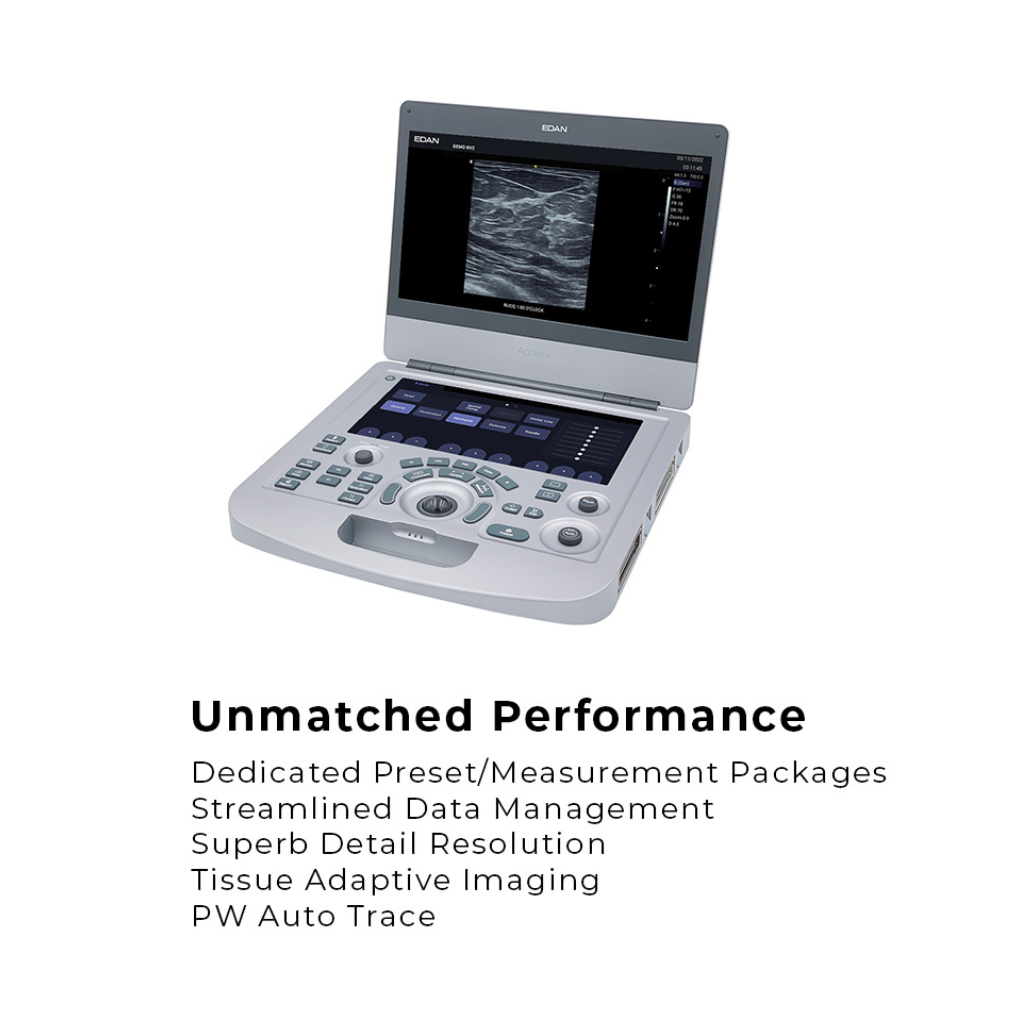

Edan Acclarix AX3 Compact Color Doppler Ultrasound System

Edan

AX3

Shipping Type: Medium Equipment | See Shipping Policy for more details

The remarkable Acclarix AX18/AX28 series Compact Ultrasound System delivers a powerhouse combination of features to meet the demands of point of care and general imaging applications. The Acclarix AX18/AX28 series has been designed f rom the ground up with a relentless focus on delivering unexpected levels of innovation and performance at a price point that is equally surprising. One active transducer port design enables switching transducer seamlessly at a finger tip Dual batteries extend the imaging scanning. Extremely light body embodied with brand new EIS operating system empowers smooth system operation and fast system response

Advanced Technique and Features:

  • TAI Tissue Adaptive Imaging
  • eSRI Adaptive Speckle Reduction Imaging
  • Frequency Compounding Imaging
  • Adaptive Spatial Compounding Imaging
  • Harmonic Imaging
  • B mode Auto Optimization
  • Digital Multi-Beam forming
  • Trapezoid Imaging
  • Adaptive Doppler imaging
  • Spectrum Enhancement
  • B Steer
  • Digital Zoom
  • Auto Doppler trace

AX18/AX28 Accessories:

  • Battery (14.8V, 5000mAh)
  • AC-DC Adapter

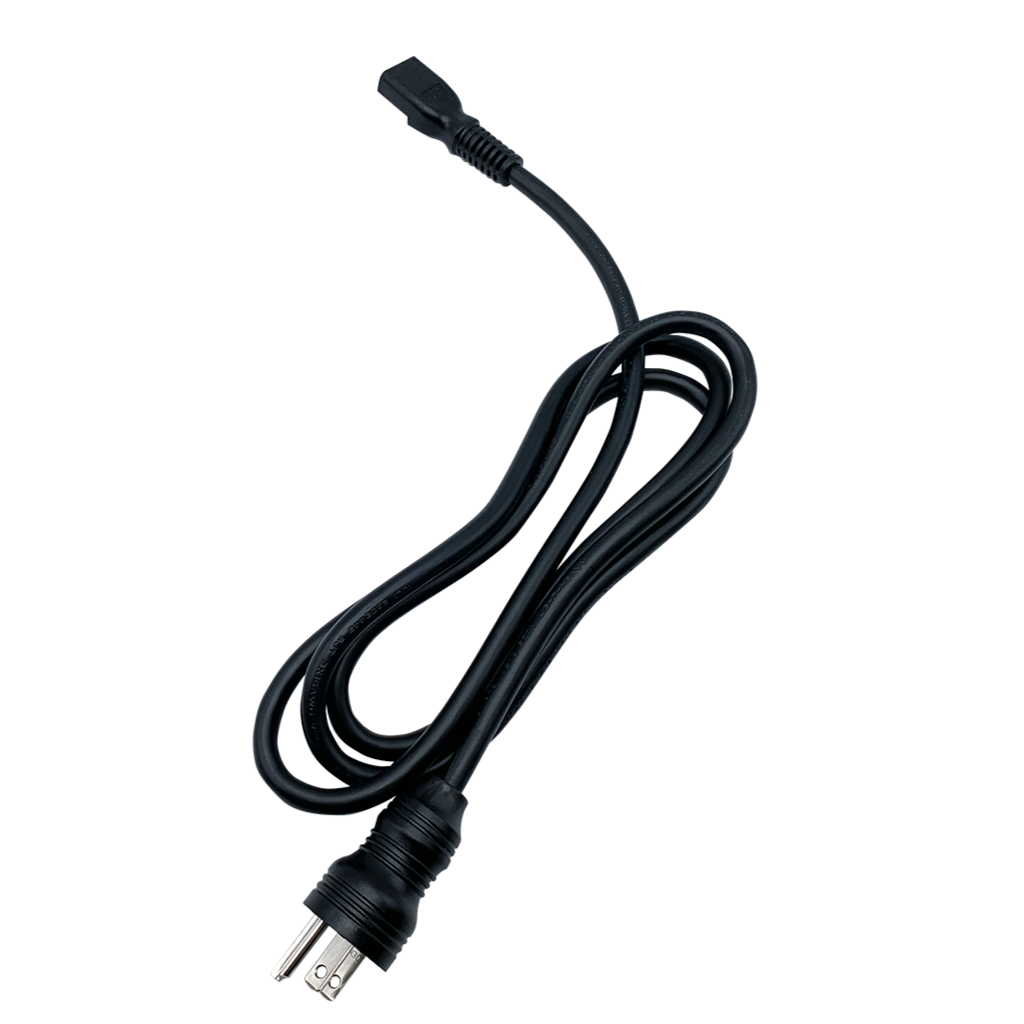

  • Power Cord (USA Standard)

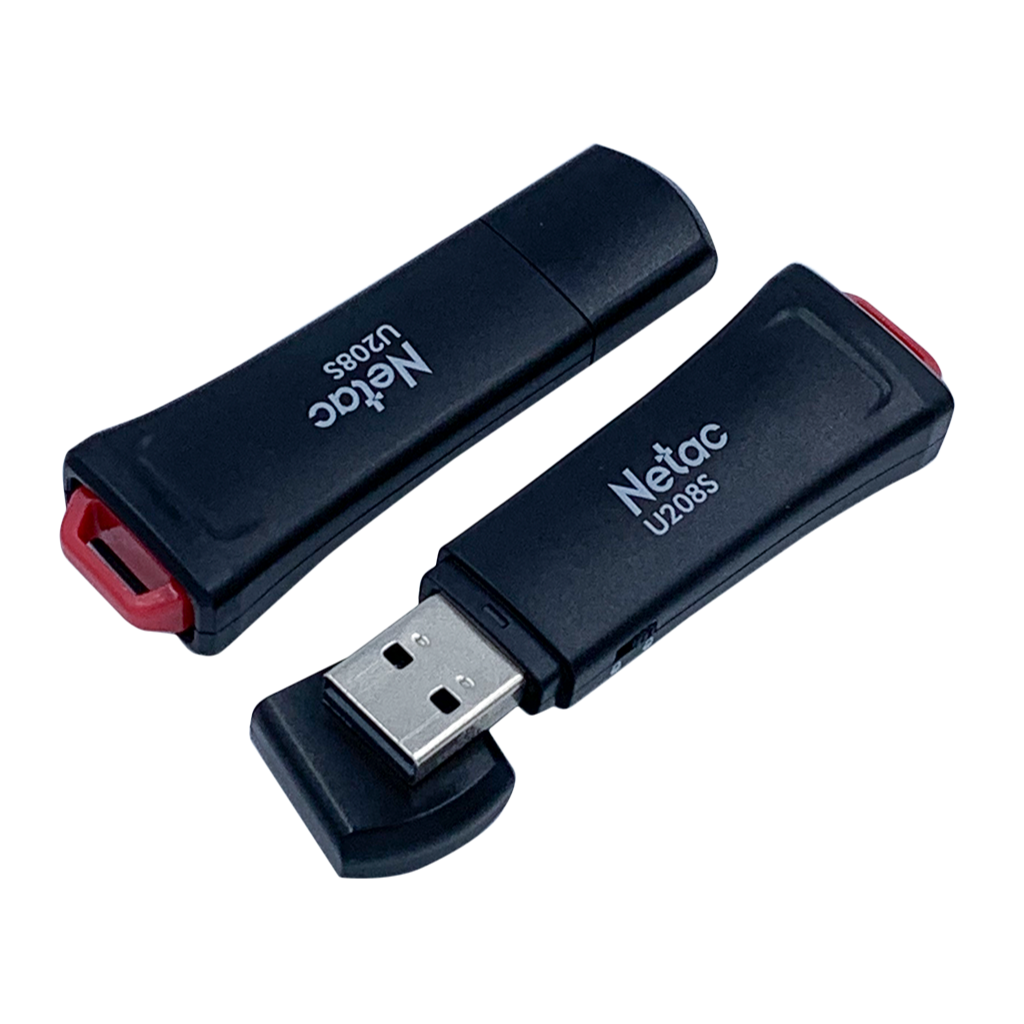

  • Flash Disk (USB 2.0)

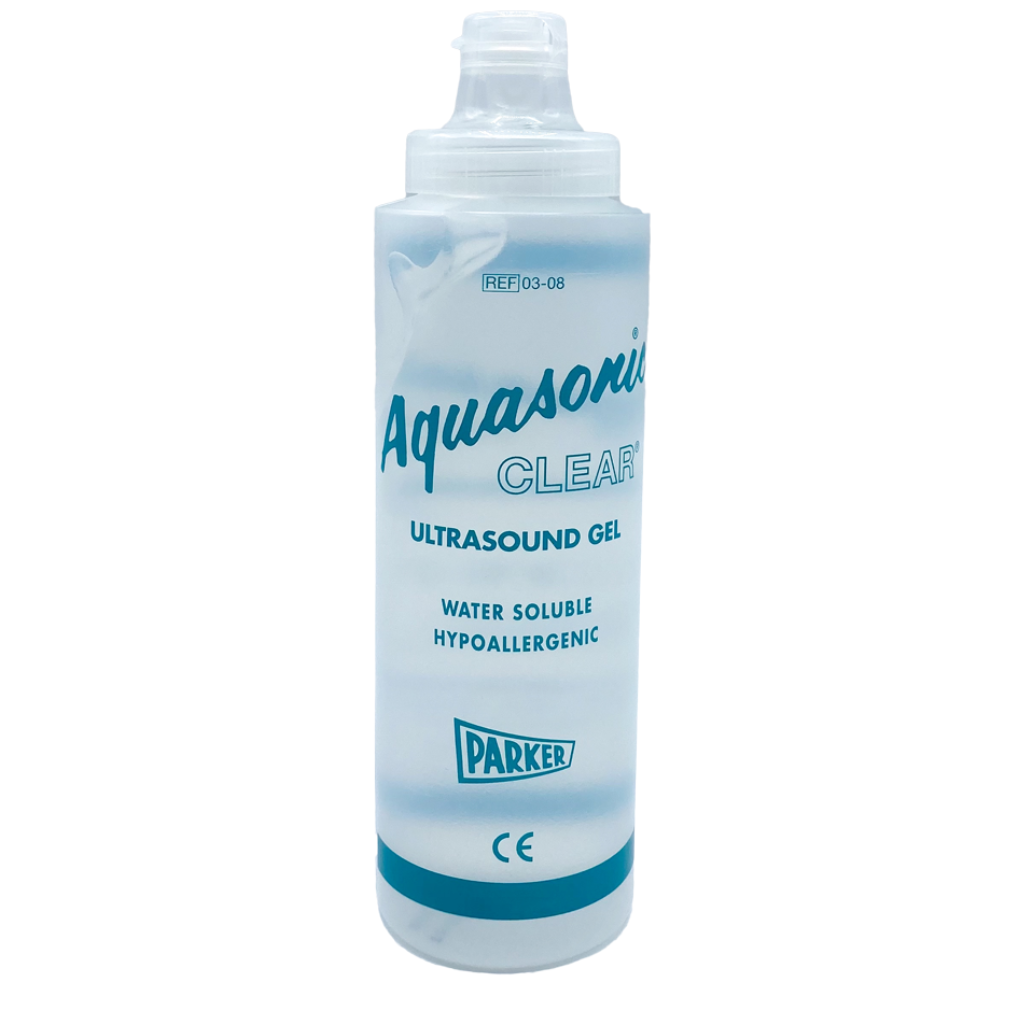

  • Ultrasound Gel (250g)
  • Trolley Cart for AX Series (Optional)

Dimensions and Weight:
• Dimension: 375 mm×380 mm×58 mm
• Net Weight (No Battery): 4.2kg (1 transducer port)
• Net Weight (1 battery): 4.65 kg (1 transducer port)
Monitor
• 15.6’’ high resolution LCD monitor
• Resolution: 1920 x 1080
• Image Size: 1040 780
• Open angle: 0° - 180°
• Magnetic latch closure
• Built-in stereo speaker
• Brightness and Contrast adjustable
Transducer Port
• One active transducer port
• Single transducer port configurable
Battery
• Rechargeable
• Max. two batteries configurable
• 5000mAh capacity for each battery
• Removable
• Approximately 1 hour of typical ultrasound
exam use for one fully charged battery.
• Approximately 2 hours of typical ultrasound
exam use for two fully charged batteries.
• Standby time: > 4 hours (two batteries)
• One battery fully charged in about 2.5 hours
• Two batteries fully charged in about 5 hours
• Battery indicator on the console near the handle
• Battery level icon displayed on the main screen
AC Power Requirements:
• Voltage: 100-240 V~
• Frequency: 50Hz/60 Hz
Body Mark
• Up to 100 Body Mark graphics in library
Imaging
Imaging Modes
• B-mode
• M-mode
• Color Doppler
• PDI/DPDI
• PW Doppler
• CW Doppler

Edan, a healthcare company, distinguishes itself with a commitment to quality and customer satisfaction. With FDA 510(k) clearance, Health Canada licenses, and the CE mark for approval, Edan remains dedicated to providing the highest quality diagnostic equipment that significantly improves patient care, all while offering competitive pricing lower than major U.S. competitors.
